80km
Max range
1200w
Rated power
50km/h
Top speed
150cc
Range extender displacement
2.2L
Fuel consumption per 100km
1732mm
Overall Length
1067mm
Overall Height
746mm
Overall Width
735mm
Saddle Height

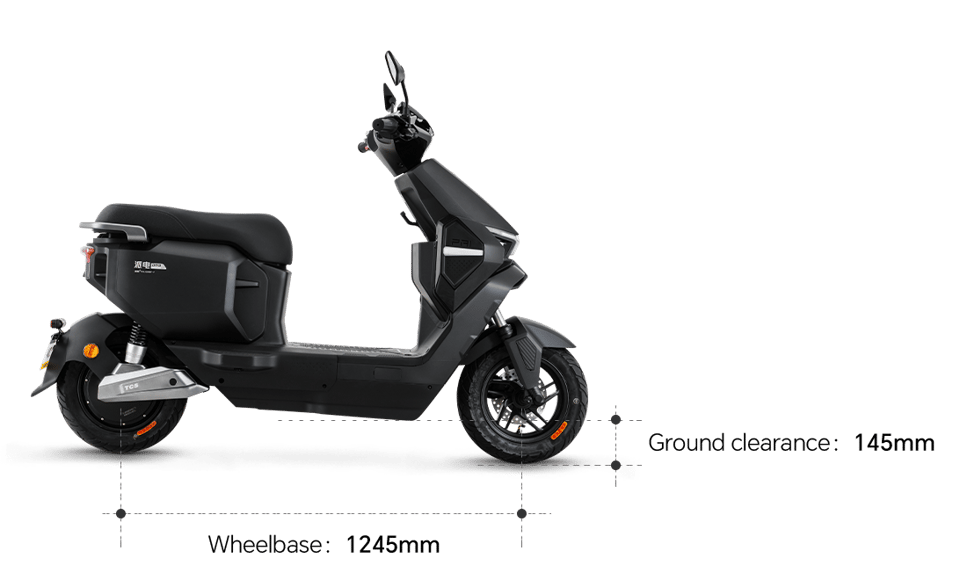

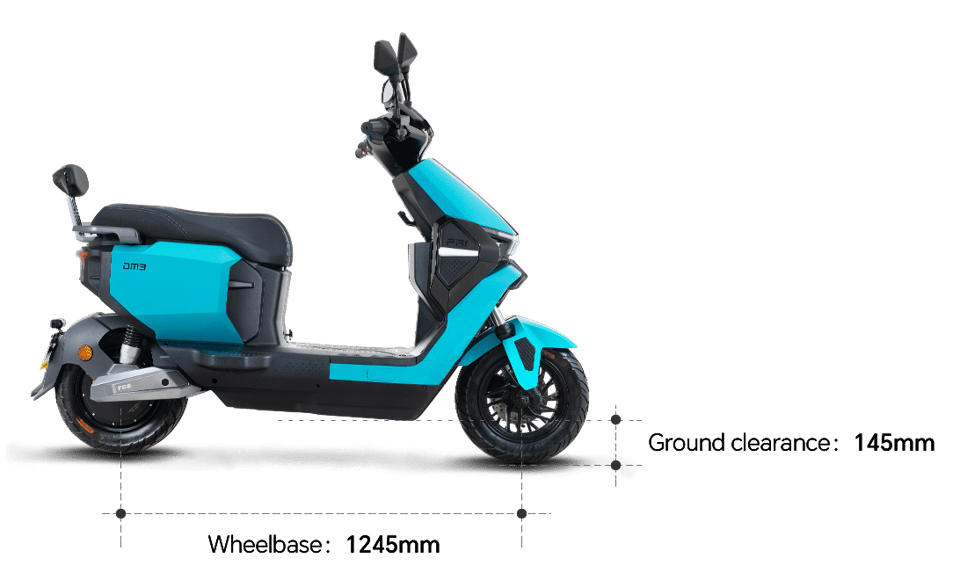

Sky Blue ProductGreen ProductDark Grey ProductObsidian Black product image

Gulf Blue

PAI LV5’s design philosophy is inspired by mecha style. The overall outlook has a sharp double-edged blade shape and an extremely undercut angle. Iconic PAI style LED taillight increased the sense of combat and movement. The acceleration time of the M2 from 0 to 100km/h only takes 2.5s. Such kind of power output can come with a more direct sense of acceleration and can make you full driving passion.

Intelligent High-Efficiency Range Extender

Range Extender Displacement:150ccRated Power:5000WPower Generation Per Liter:2.2kW·hRated Rotational Speed:6000rpm

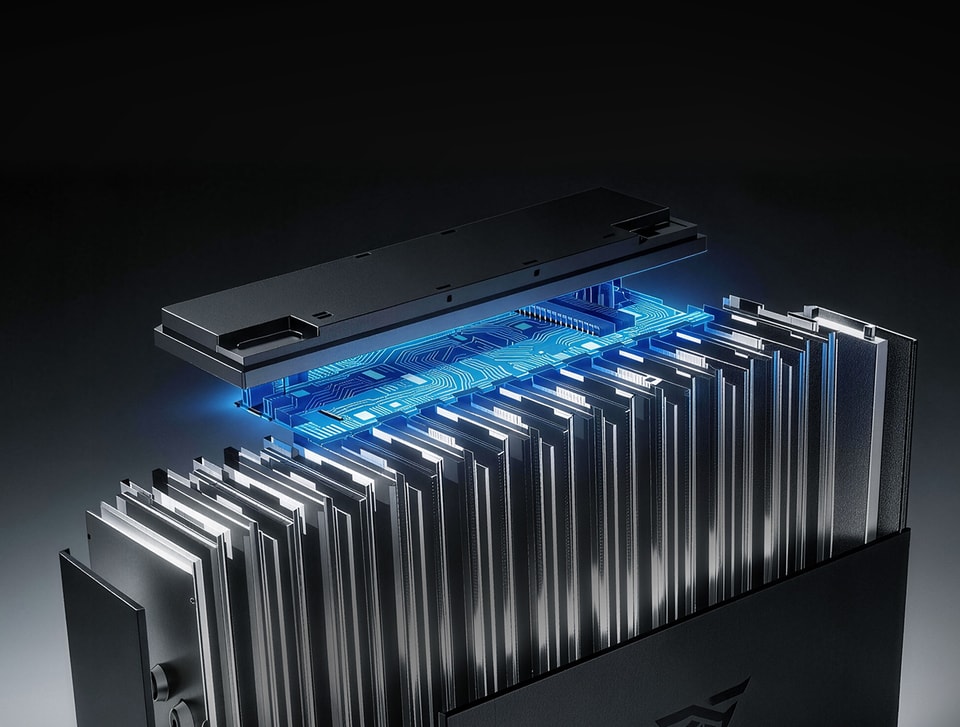

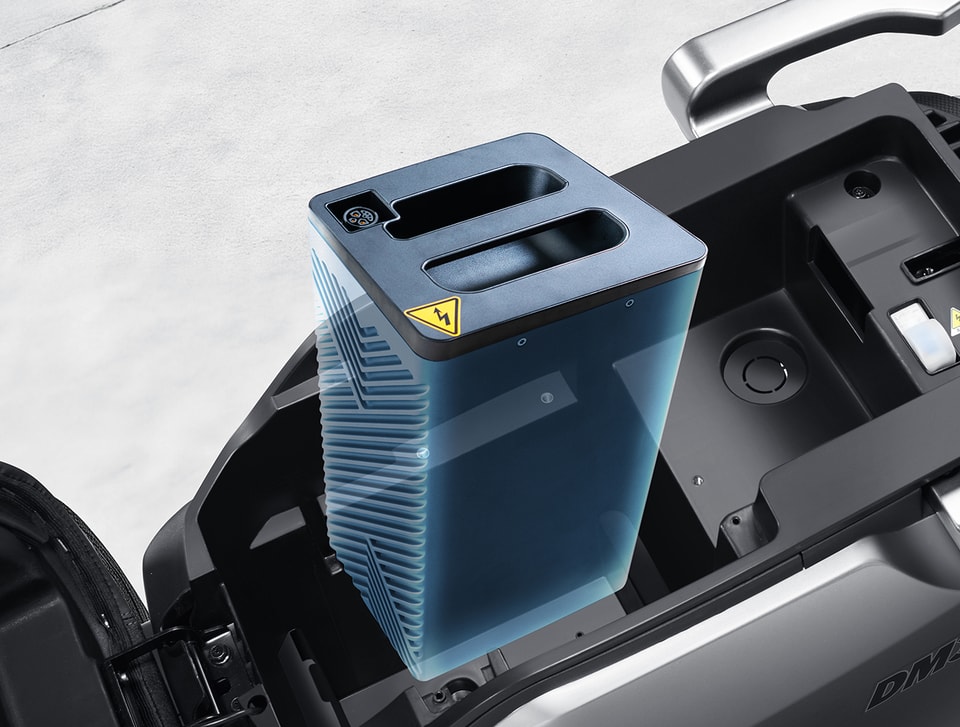

NMC Semi-Solid-State Battery

Battery Specification: 74V 30Ah
Battery Pack Waterproof Rating: IP67
Cycle Life: Over 2000 Cycles
Discharge Rate: Peak 5C, Continuous 3C

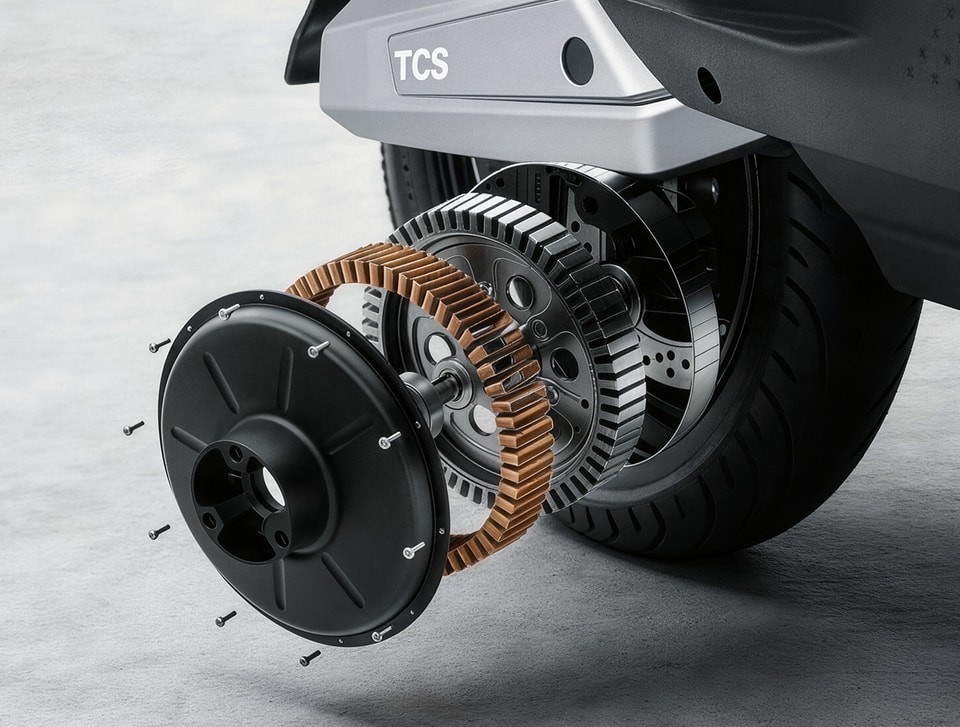

13-inch Tile-type Hub Motor

Adopting high-efficiency energy conversion, it delivers longer cruising range, stable thermal management and ultra-high power density.

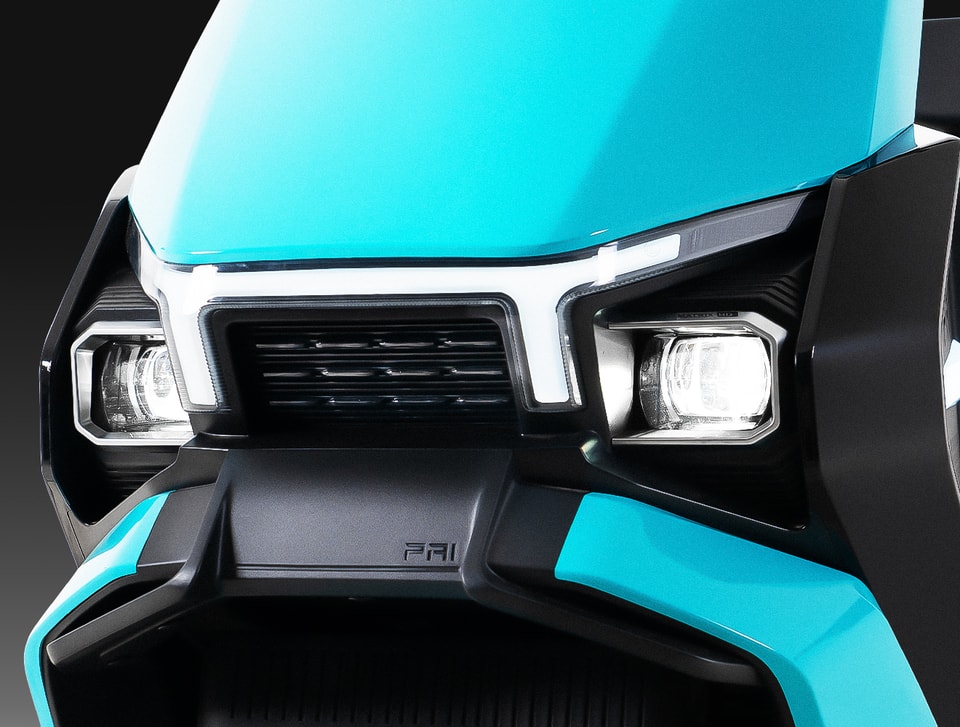

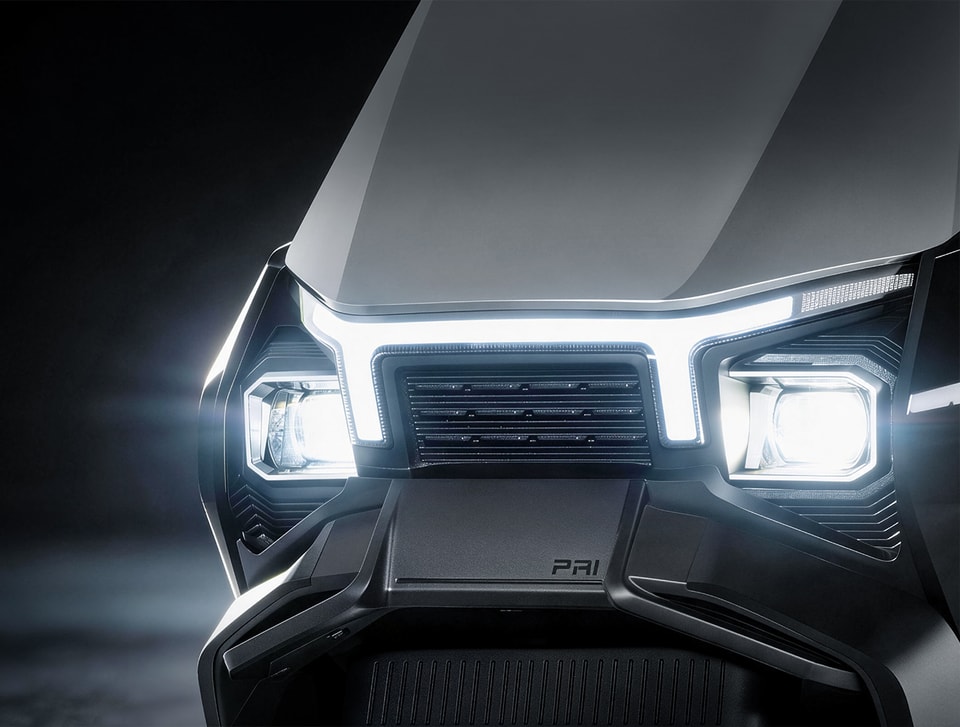

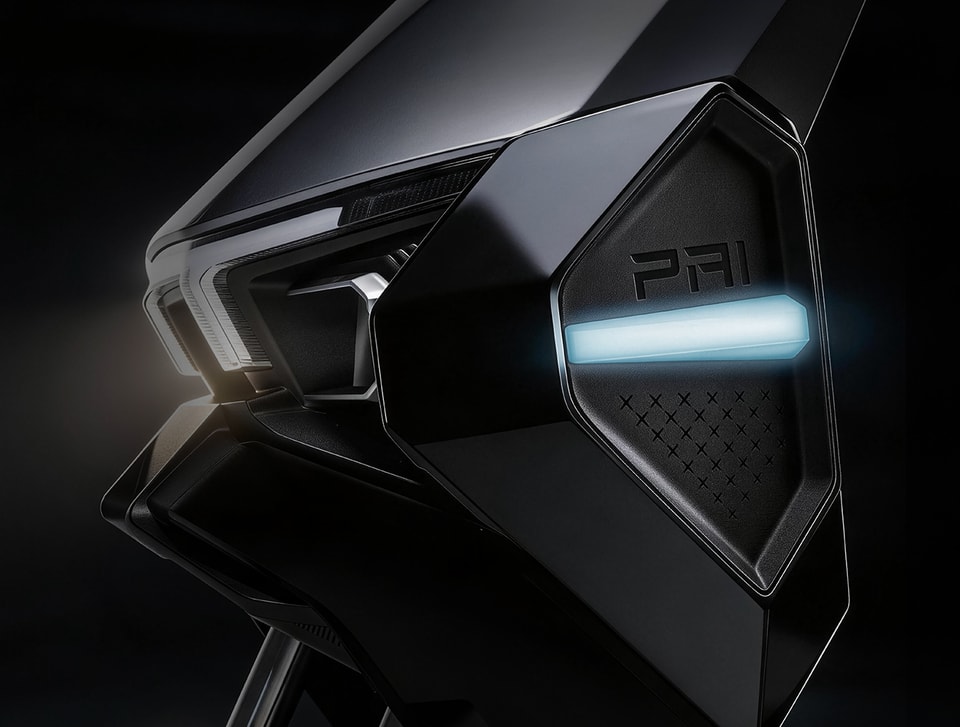

π family gene light curtain lamp group

The maximum effective irradiation distance of low beam exceeds 35m, and the maximum effective irradiation distance of high beam exceeds 110m
Low beam brightness: 13000cd; High beam brightness: 50000cd

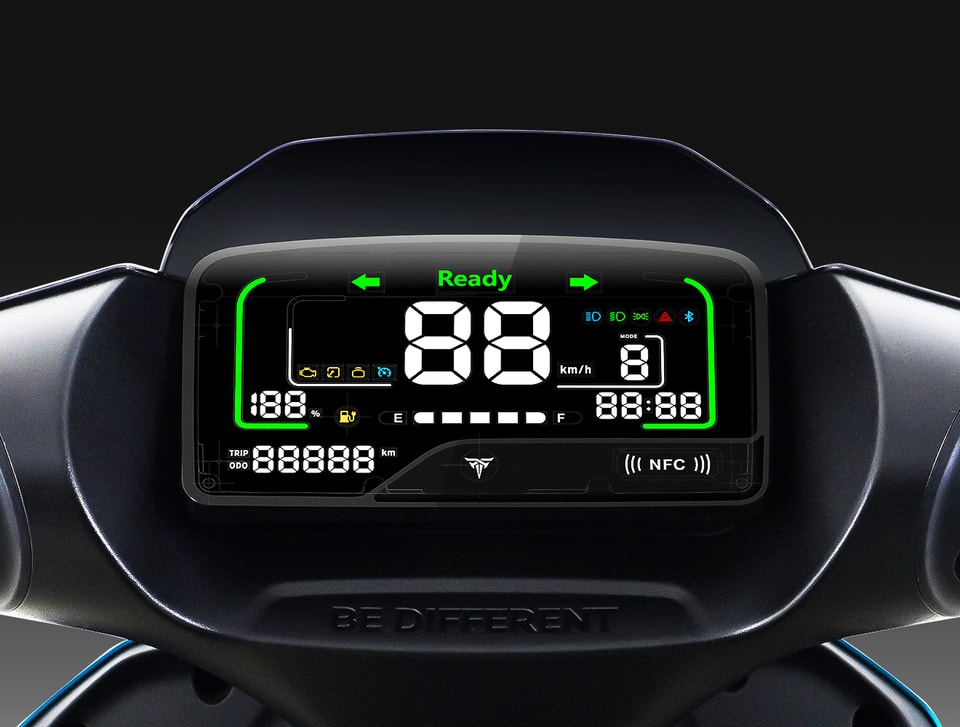

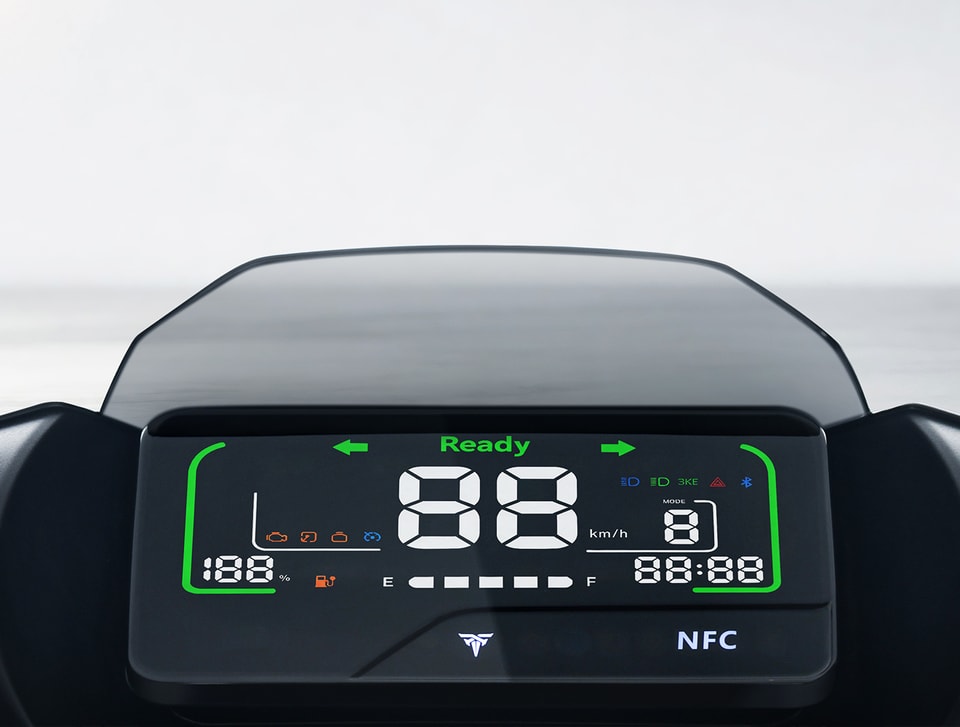

5-inch high-definition TFT instrument panel

Safely escort you home

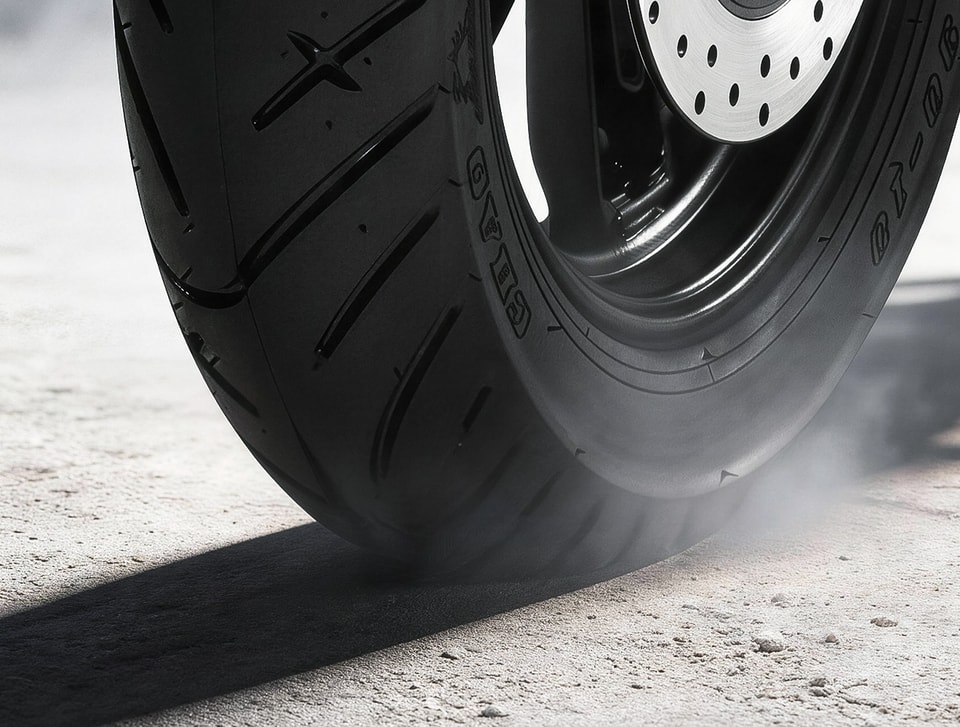

High wear resistant tires

Front wheel 100/80-14, rear wheel 130/70-13
  • Length Width Height
    1732mm*746mm*1067mm
  • Seat height
    735mm

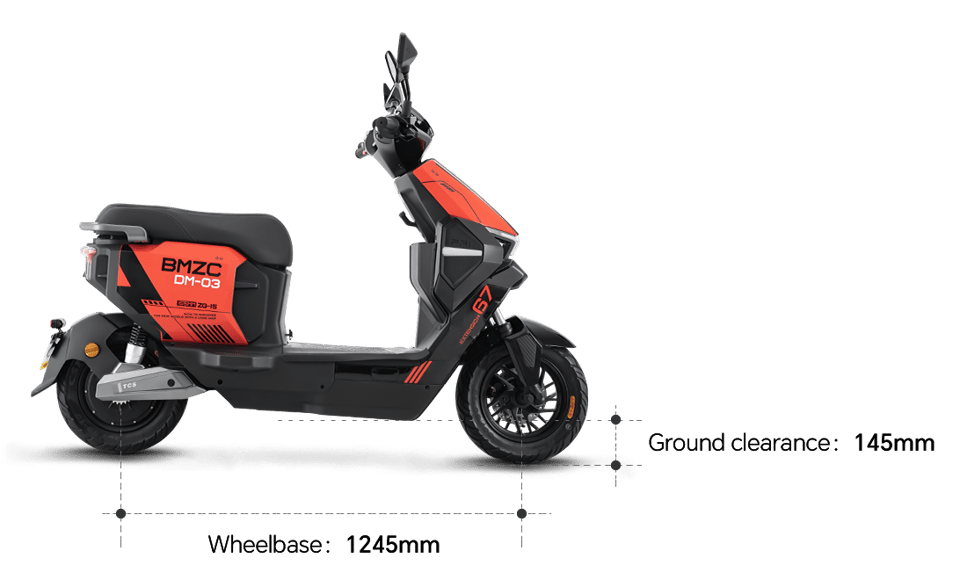

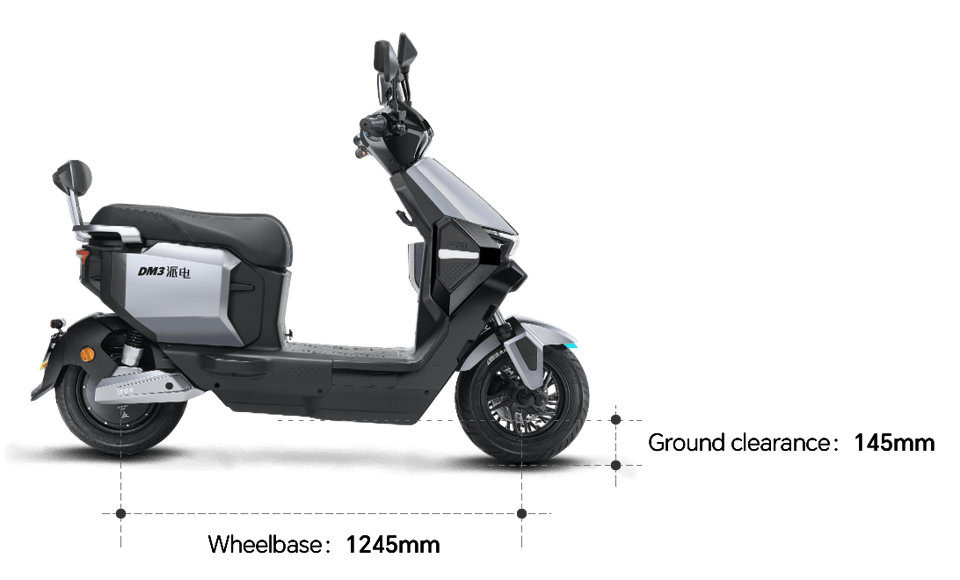

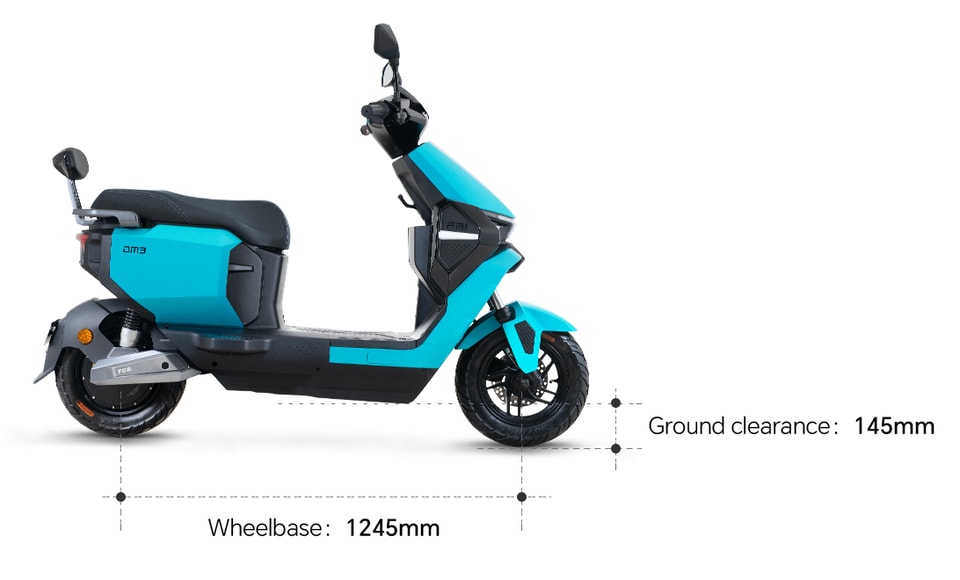

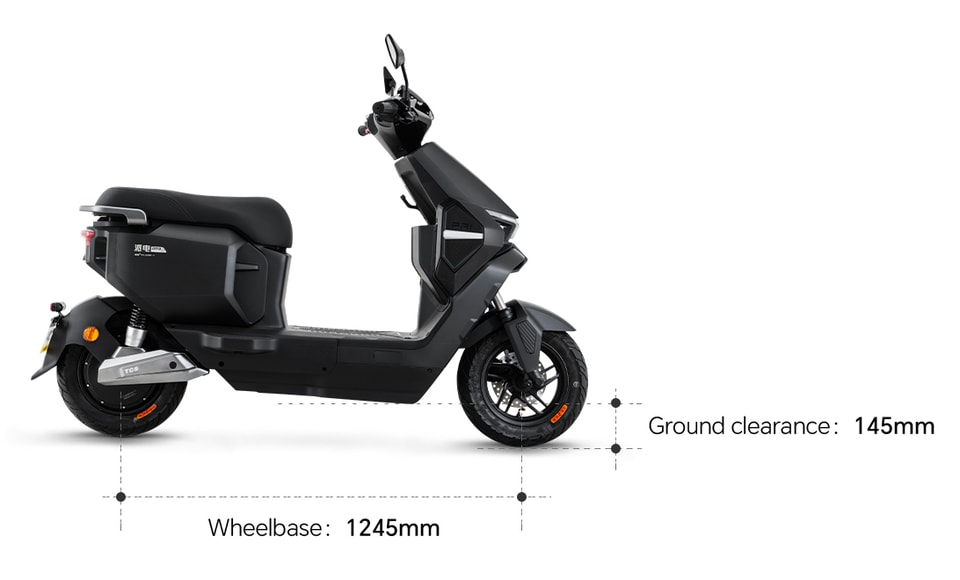

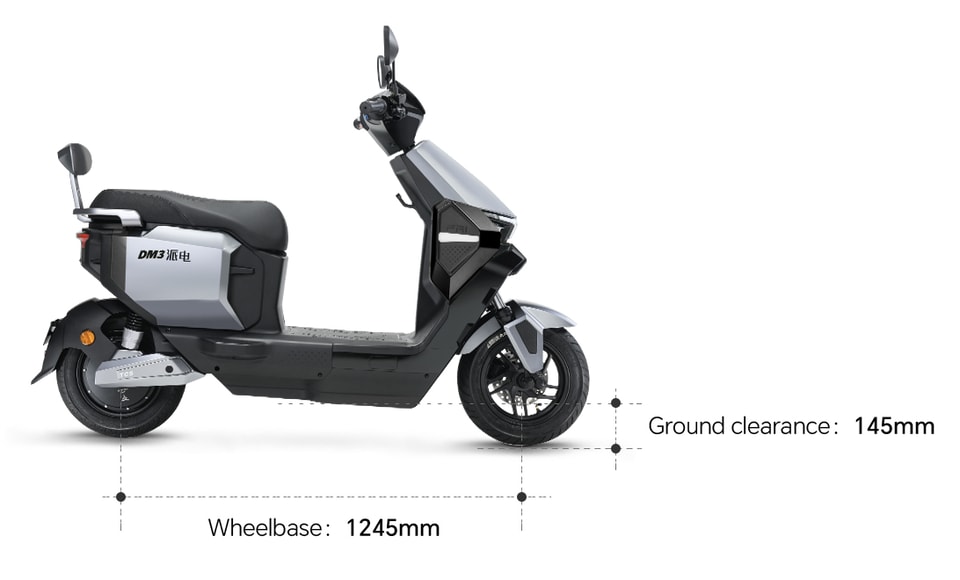

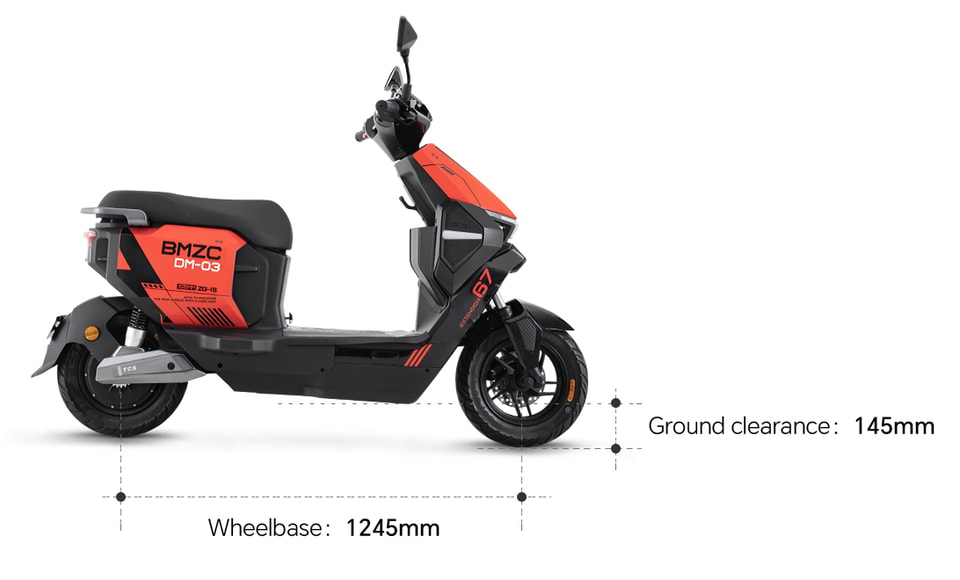

  • Ground clearance
    145mm
  • Wheelbase
    1245mm
  • Curb weight
    54kg
  • MotorHub motor
  • Rated Power1200W
  • Peak Power2000W
  • BatteryLithium
  • Max Speed50km/h
  • Max Range70km
  • Grade Ability15°
  • Maximum Torque25.7N·m

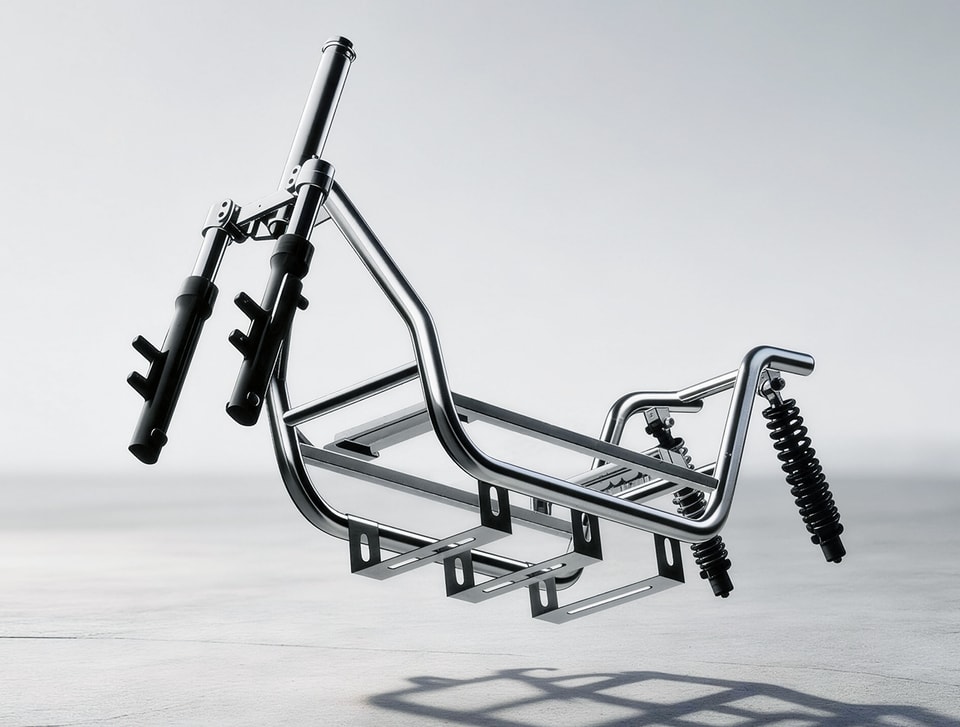

  • Framesteel tube

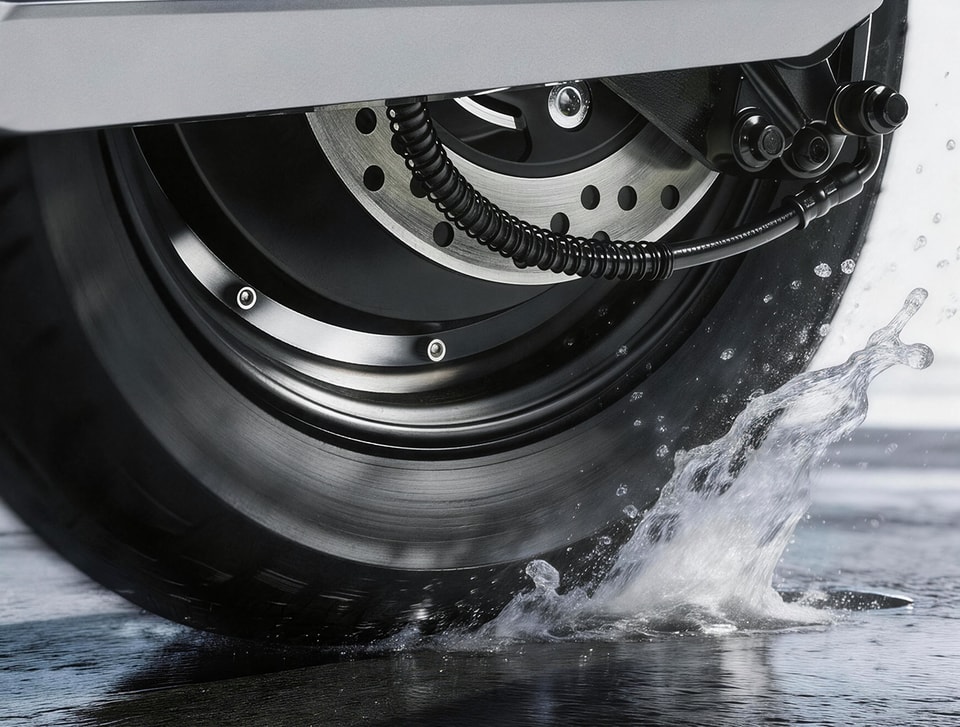

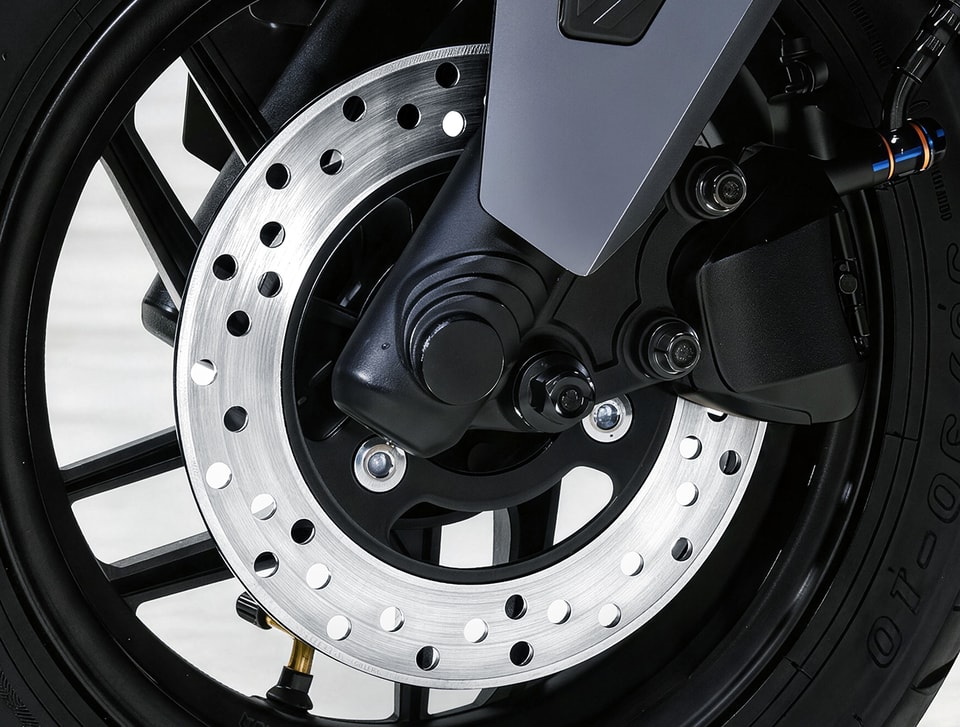

  • BrakeFront: Disc Φ180,2-Piston Rear: Disc Φ180,2-Piston

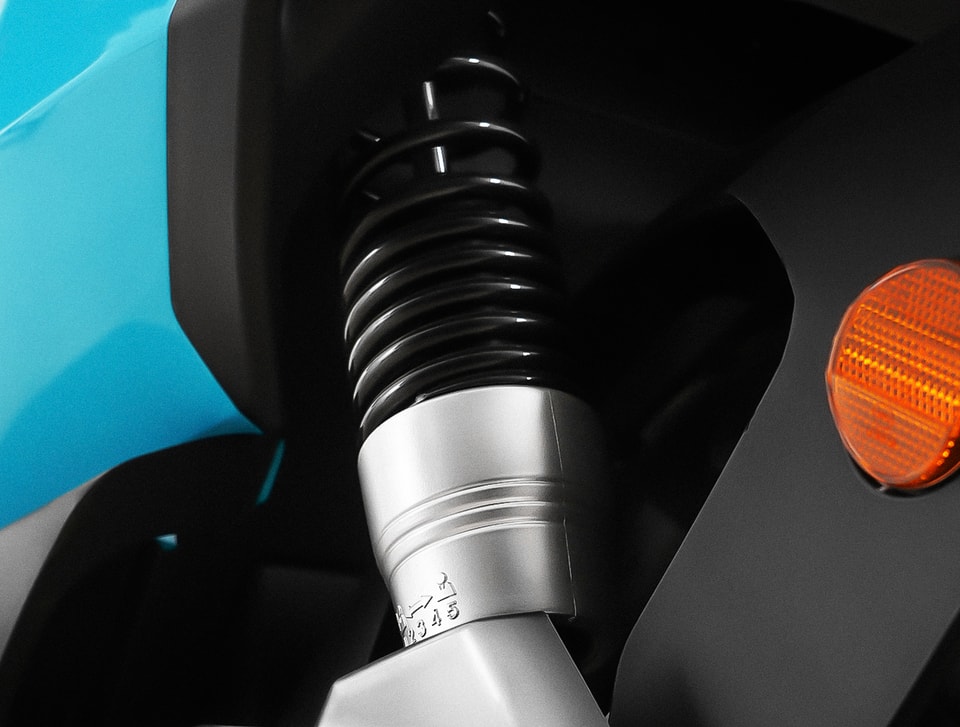

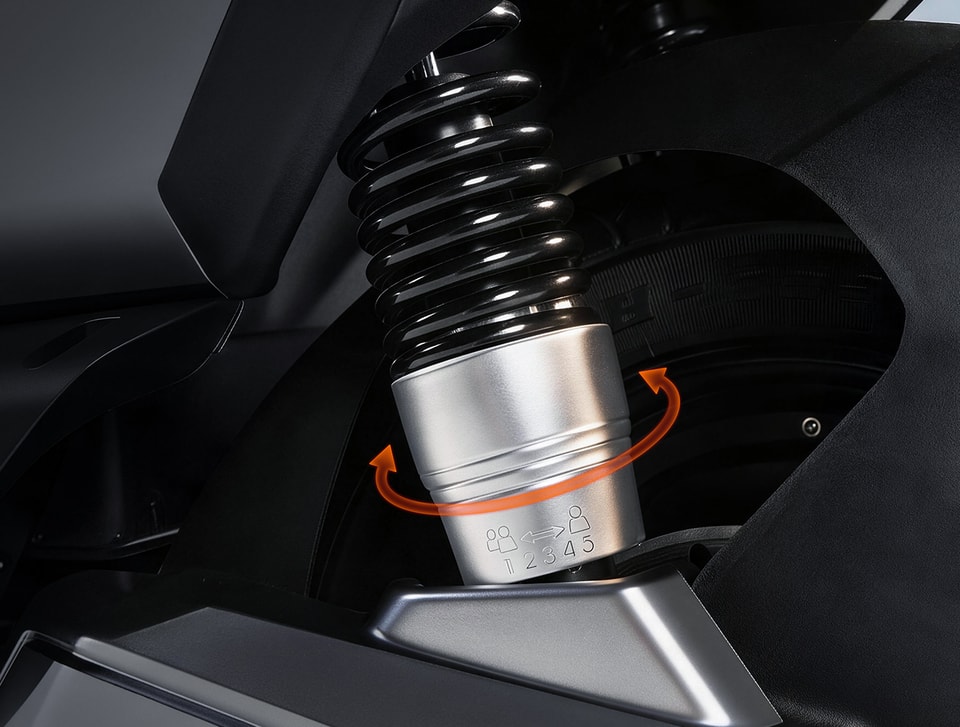

  • SuspensionsFront: hydraulic Rear: twinshock, spring damper
  • TiresFront: 3.0-10 Rear:3.0-10
  • Capacity72V25Ah
  • Headlight / TaillightLED
  • MeterLCD
  • Keyless AccessBT/NFC
  • WirelessBT

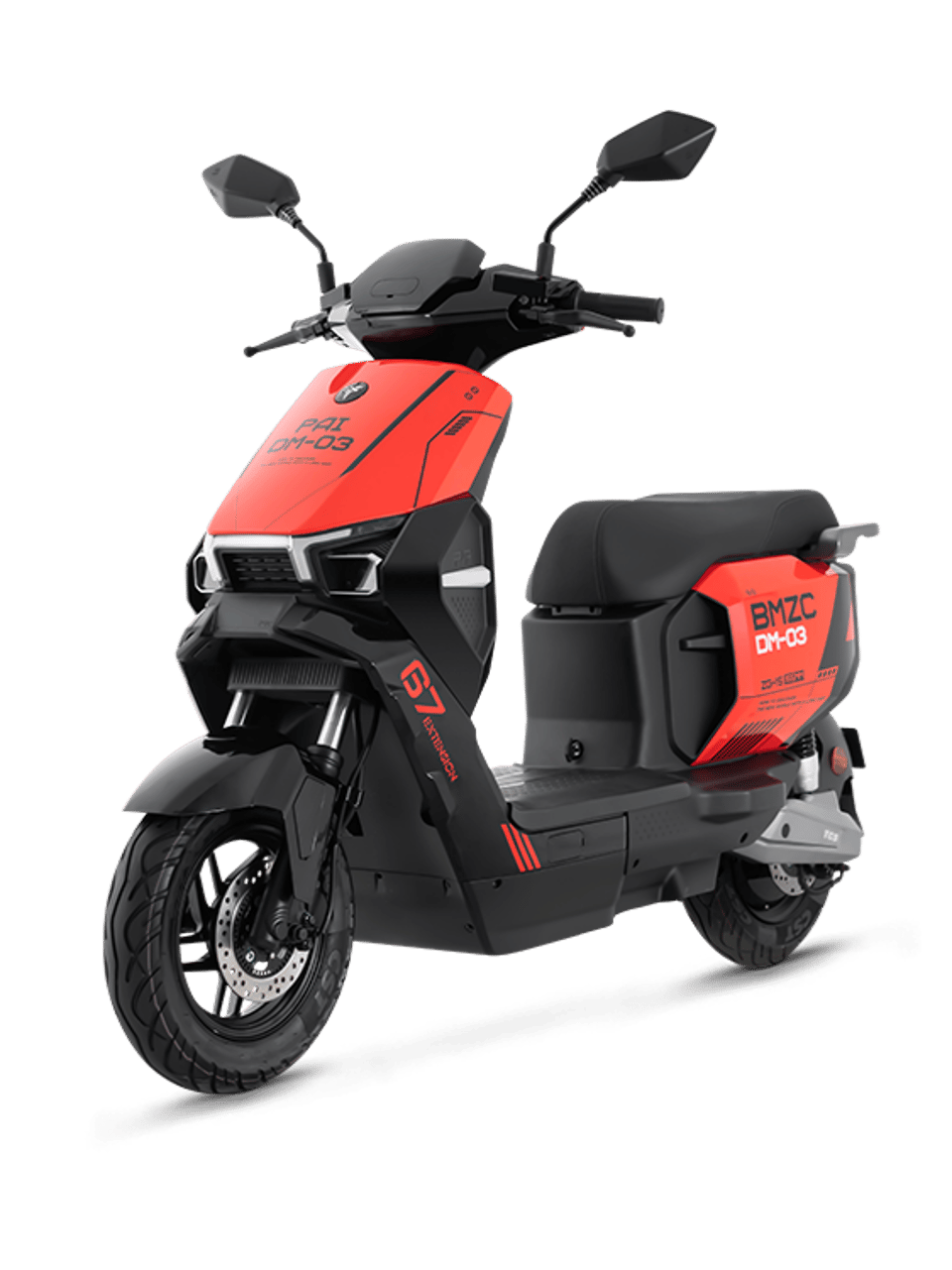

Product Specification Diagram
