110km
Max range
3000w
Rated power
85km/h
Top speed
150cc
Range extender displacement
2.2L
Fuel consumption per 100km
PAI TS1
1850mm
Overall Length
1200mm
Overall Height
705mm
Overall Width
790mm
Saddle Height
Eental white

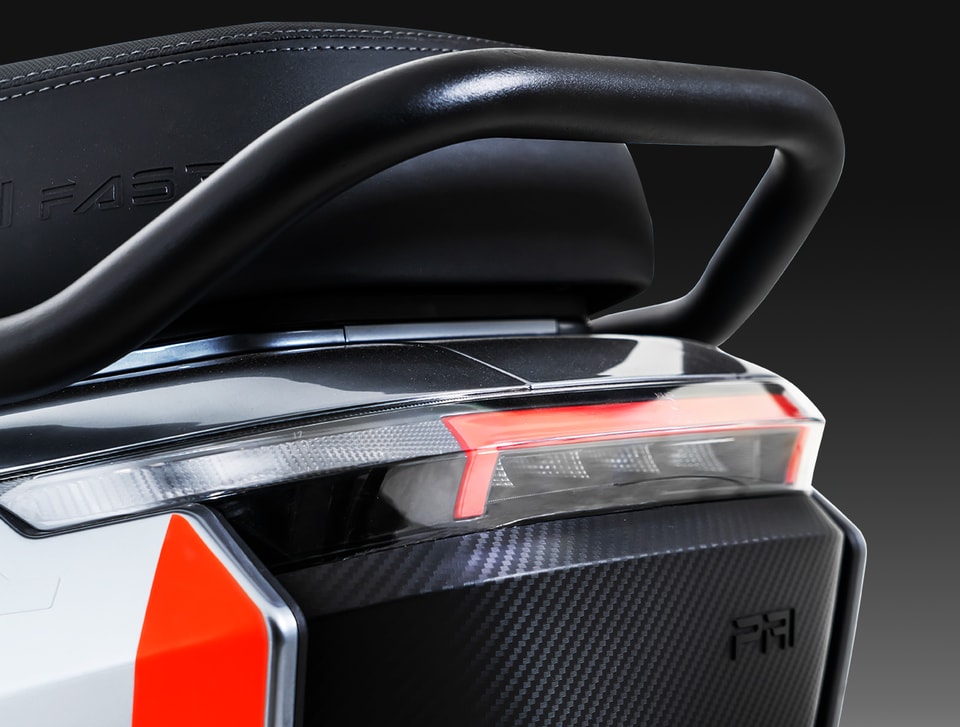

PAI LV5’s design philosophy is inspired by mecha style. The overall outlook has a sharp double-edged blade shape and an extremely undercut angle. Iconic PAI style LED taillight increased the sense of combat and movement. The acceleration time of the M2 from 0 to 100km/h only takes 2.5s. Such kind of power output can come with a more direct sense of acceleration and can make you full driving passion.
Intelligent High-Efficiency Range Extender
Range Extender Displacement：150ccRated Power：5000WPower Generation Per Liter：2.2kW·hRated Rotational Speed：6000rpm
NMC Semi-Solid-State Battery
Battery Specification: 74V 30Ah
Battery Pack Waterproof Rating: IP67
Cycle Life: Over 2000 Cycles
Discharge Rate: Peak 5C, Continuous 3C
Battery Pack Waterproof Rating: IP67
Cycle Life: Over 2000 Cycles
Discharge Rate: Peak 5C, Continuous 3C

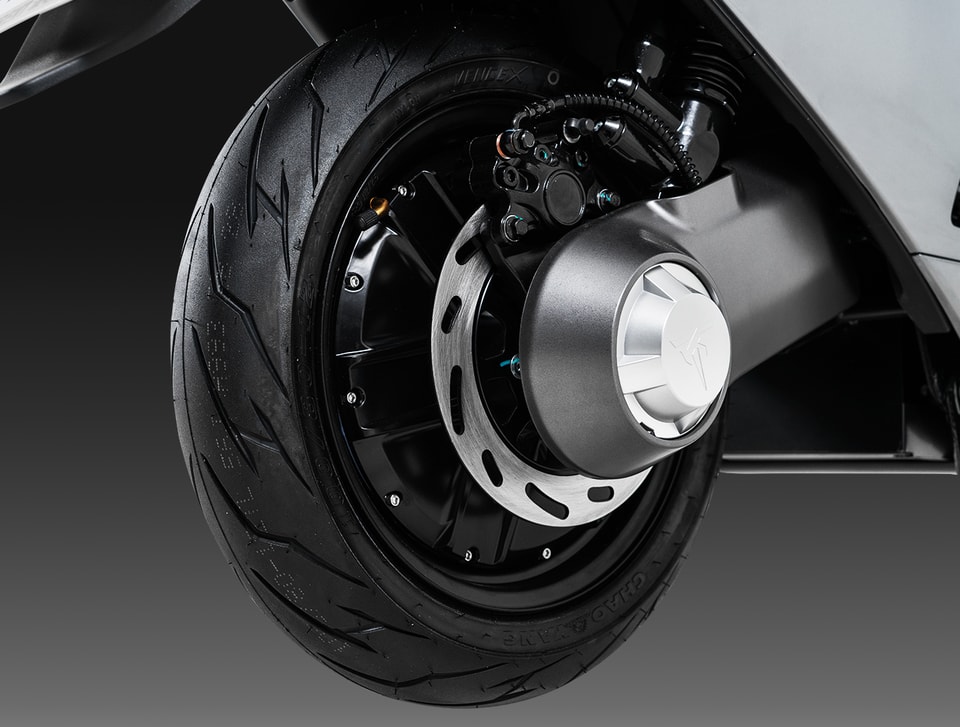

13-inch Tile-type Hub Motor
Adopting high-efficiency energy conversion, it delivers longer cruising range, stable thermal management and ultra-high power density.

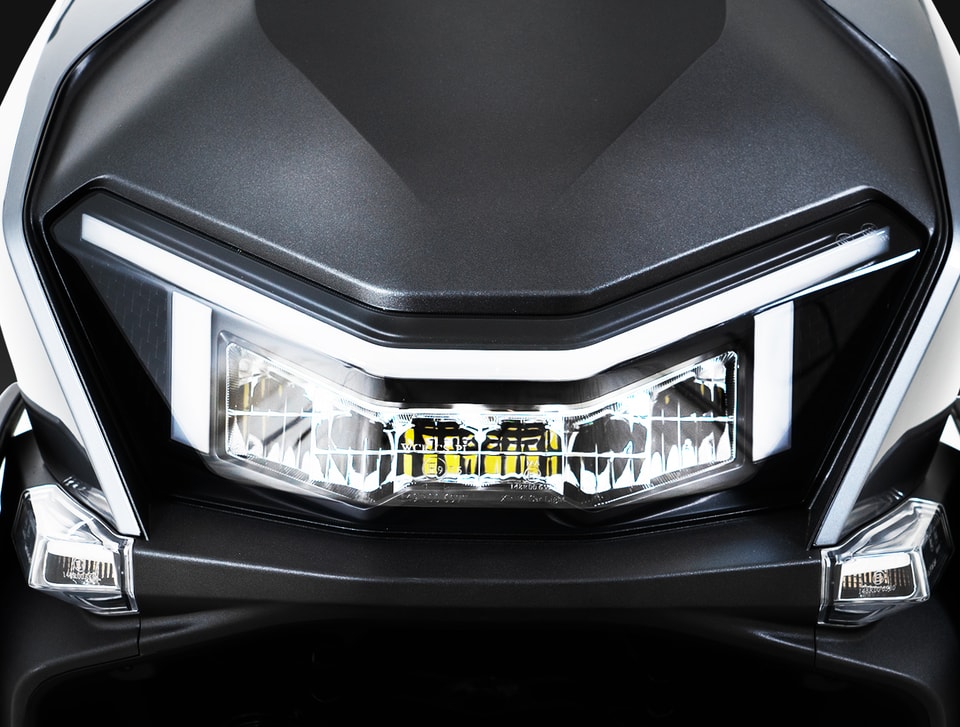

π family gene light curtain lamp group
The maximum effective irradiation distance of low beam exceeds 35m, and the maximum effective irradiation distance of high beam exceeds 110m
Low beam brightness: 13000cd; High beam brightness: 50000cd
Low beam brightness: 13000cd; High beam brightness: 50000cd

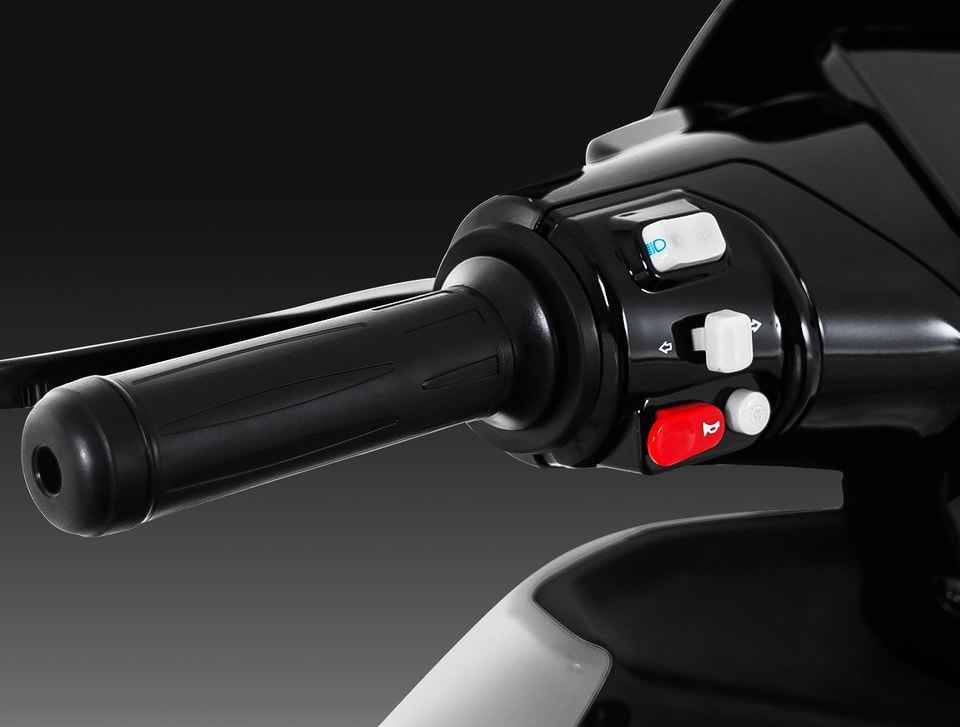

Ergonomic Handlebar
Designed for comfortable control and stable handling, improving riding confidence during daily commuting and longer trips.

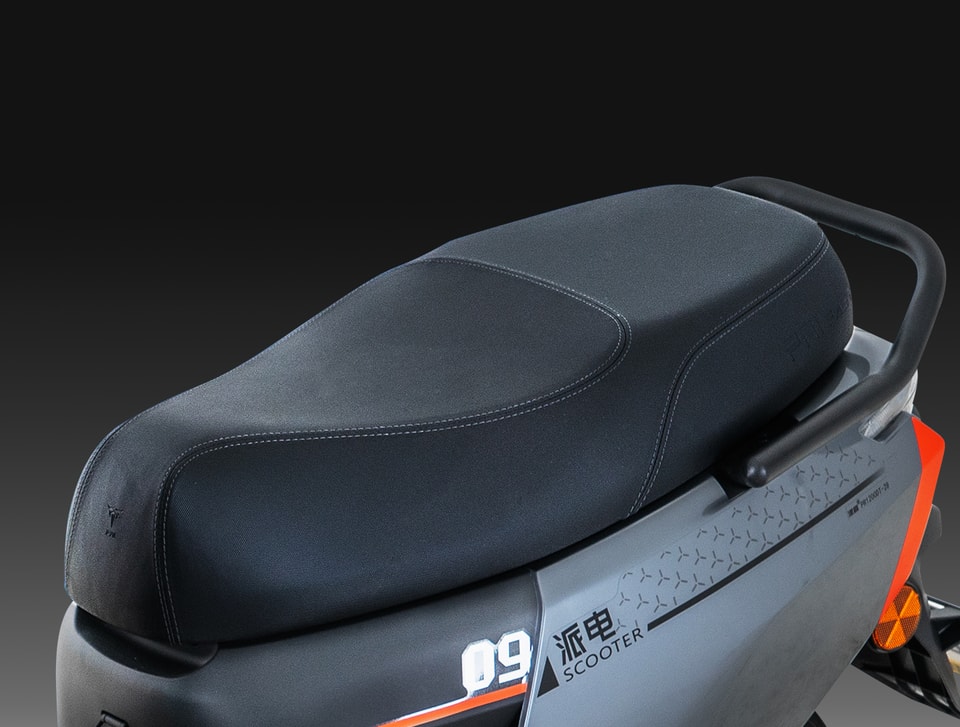

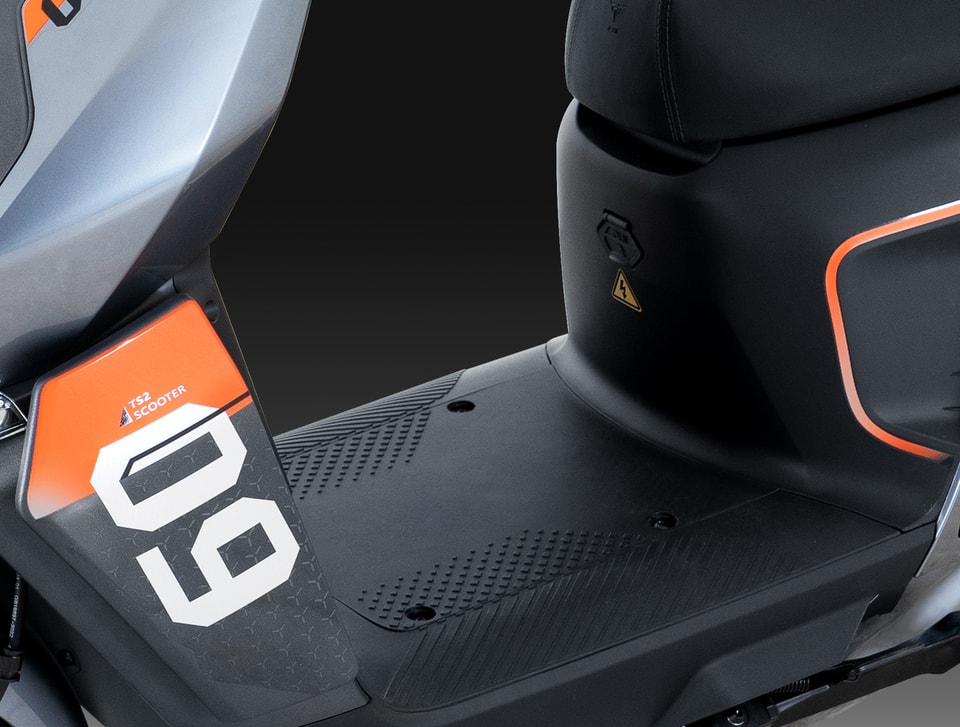

Comfortable Seat Cushion
A widened and supportive seat cushion provides better comfort for both rider and passenger, suitable for extended urban riding.
Smart Cockpit Design
A clean cockpit layout integrates key riding information clearly, delivering a modern and convenient riding experience.
- Length Width Height
1920mm*705mm*1200mm - Seat Height

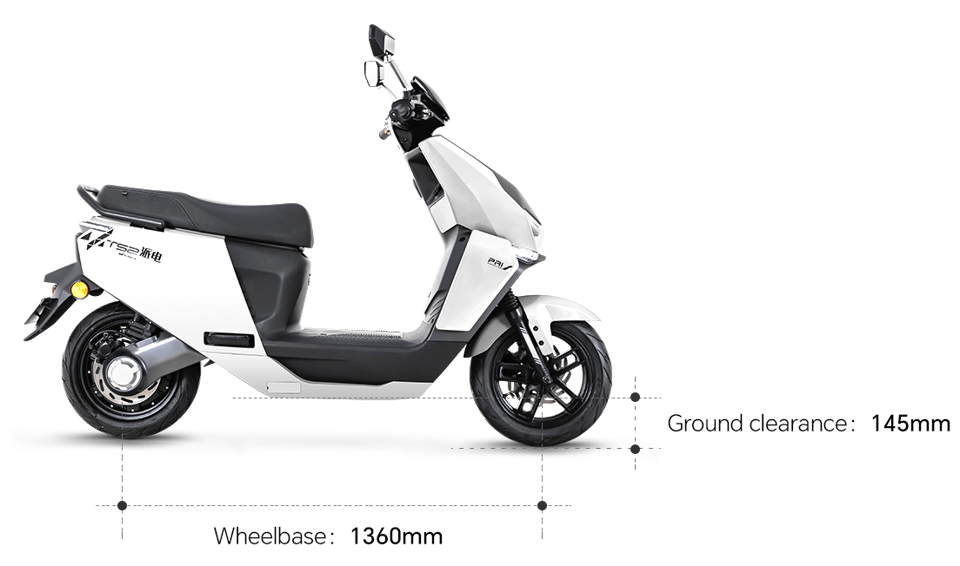

755mm - Ground Clearance
145mm - Wheelbase
1360mm - Curb Weight
93kg
- MotorHub motor
- Rated Power3000W
- Peak Power4500W
- BatteryLithium
- Max Speed85km/h
- Max Range110km
- Grade Ability20°
- Maximum Torque36.4N·m
- Framesteel tube
- BrakeFront: Disc Φ220,2-Piston Rear: Disc Φ220,2-Piston
- SuspensionsFront: hydraulic Rear: twinshock, spring damper
- TiresTires
- ABS / CBSCBS
- Capacity74V28Ah*2
- Headlight / TaillightLED
- MeterLCD
- Keyless AccessBT/NFC
- WirelessBT
