PAI LV5 Range-Extended Electric Motorcycle

500km+
Overall range
100km/h
Top speed
5000w
Rated power
150cc
Range extender displacement
2.2L
Fuel consumption per 100km
1943mm
Overall Length
1099mm
Overall Height
764mm
Saddle Height
745mm
Overall Width
图片 1图片 2图片 3

Element White

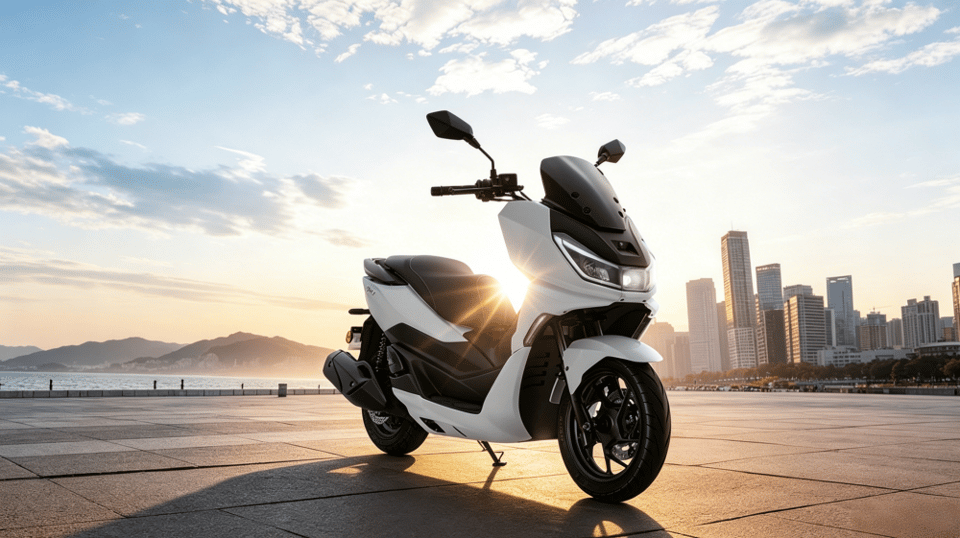

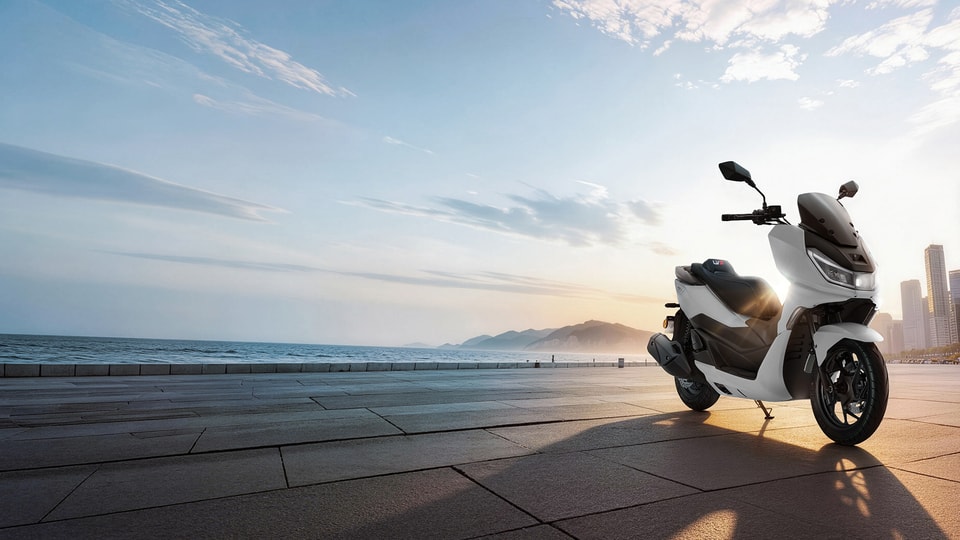

The PAI LV5 is a Smart Range-Extended Electric Motorcycle designed to eliminate range anxiety.
It delivers an exceptional riding range of over 500 km, powered by a 150cc high-efficiency generator set, a 9.0L fuel tank, and a semi-solid-state lithium battery. With a worry-free ride that covers daily commutes and extends to weekend adventures far beyond city limits, it offers true touring freedom.

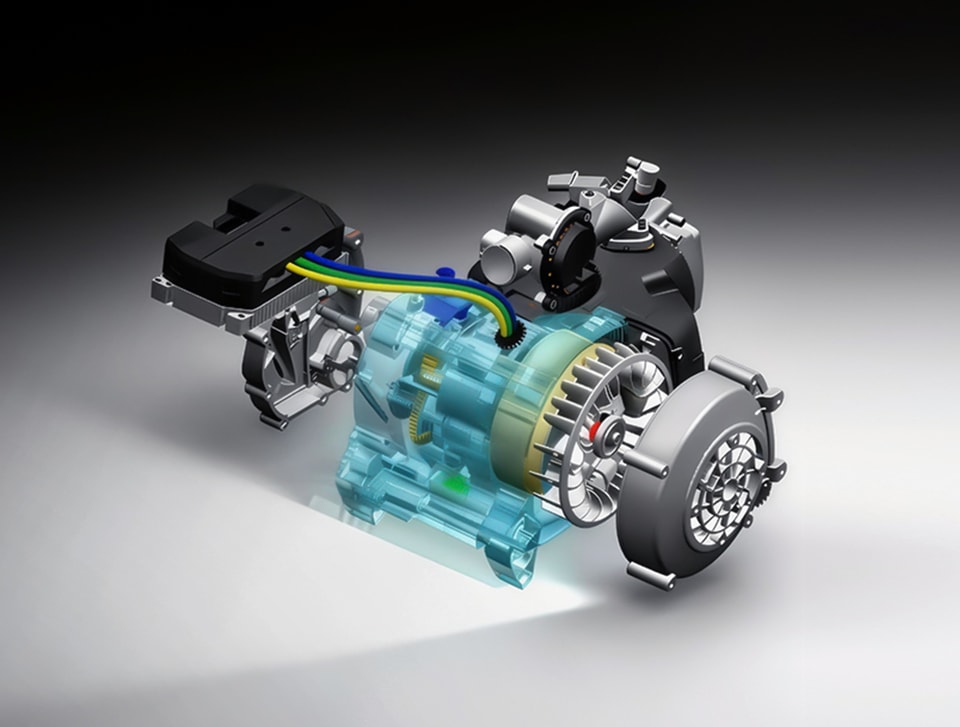

High-efficiency Smart Range Extender

Range extender displacement: 150cc
Rated power: 5000w
Electricity generated per litre of fuel: 2.2kw.h
Rated Speed: 6000rpm

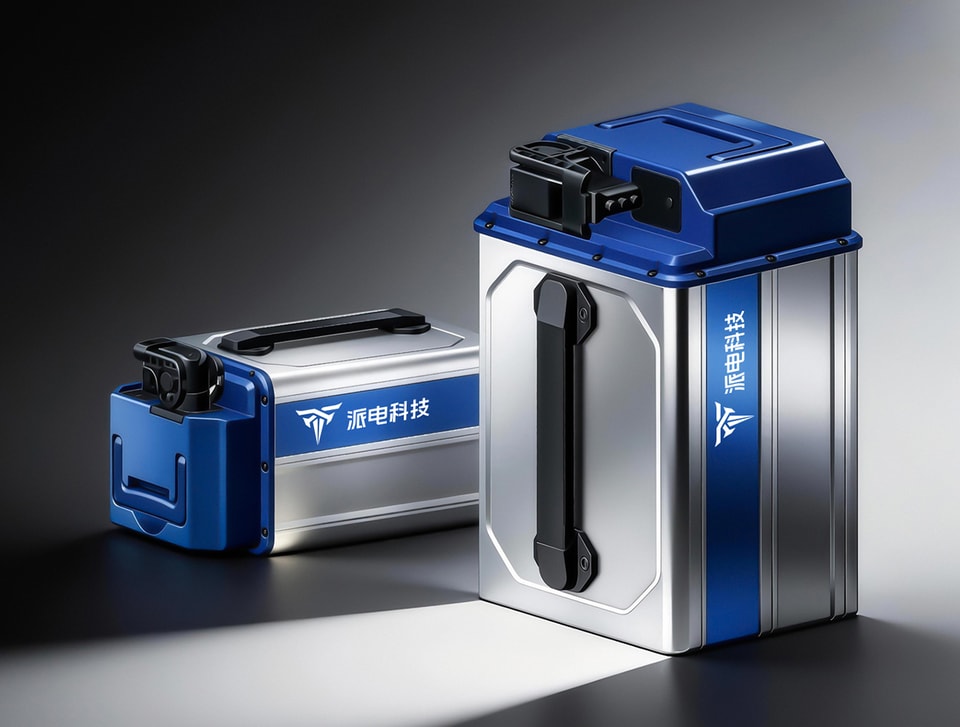

Ternary lithium semi-solid battery

Battery Specifications: 74V30Ah
Battery pack waterproof rating: IP67
Number of cycles: 2000+
Discharge: 5C 3c continuous

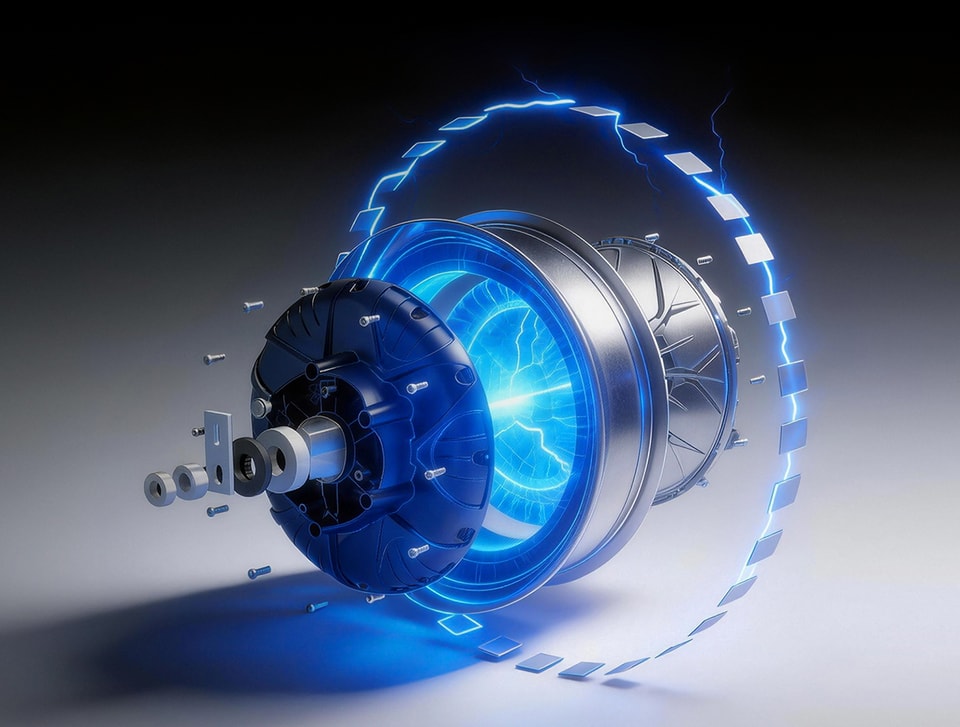

13-Inch hub motor

Maximum torque: 239N·m
Maximum horsepower: 13.25ps
Peak power: 10kw
Maximum rotating speed: 1100rpm

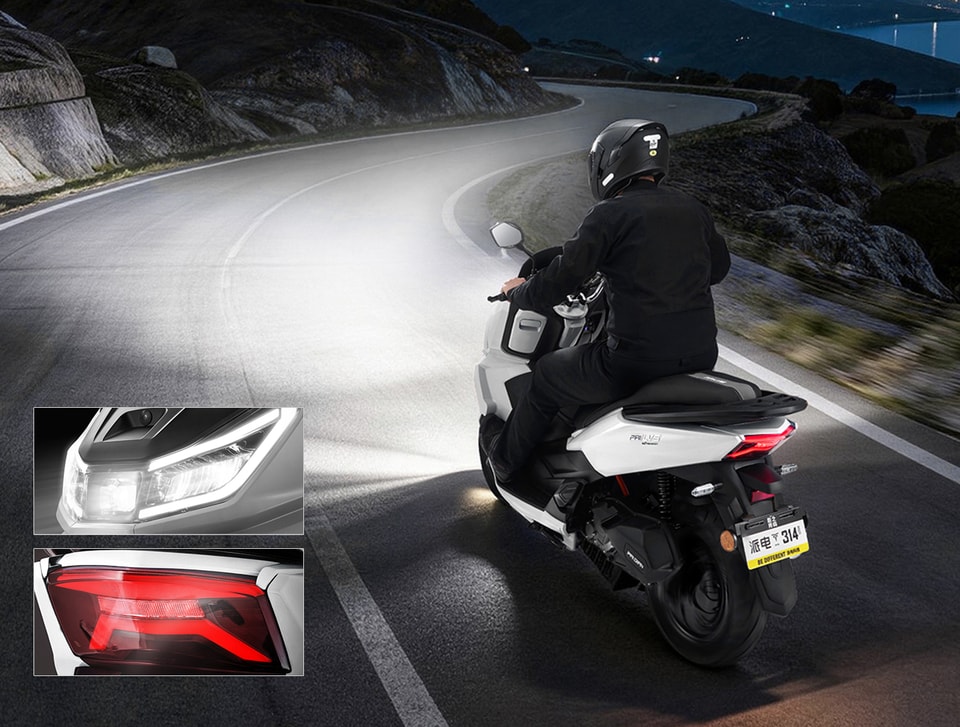

Aggressive PAI(π) Signature Light Design

Low beam: >35m maximum effective range
High beam: >110m maximum effective range
Low beam brightness: 13000cd
High beam brightness: 50000cd

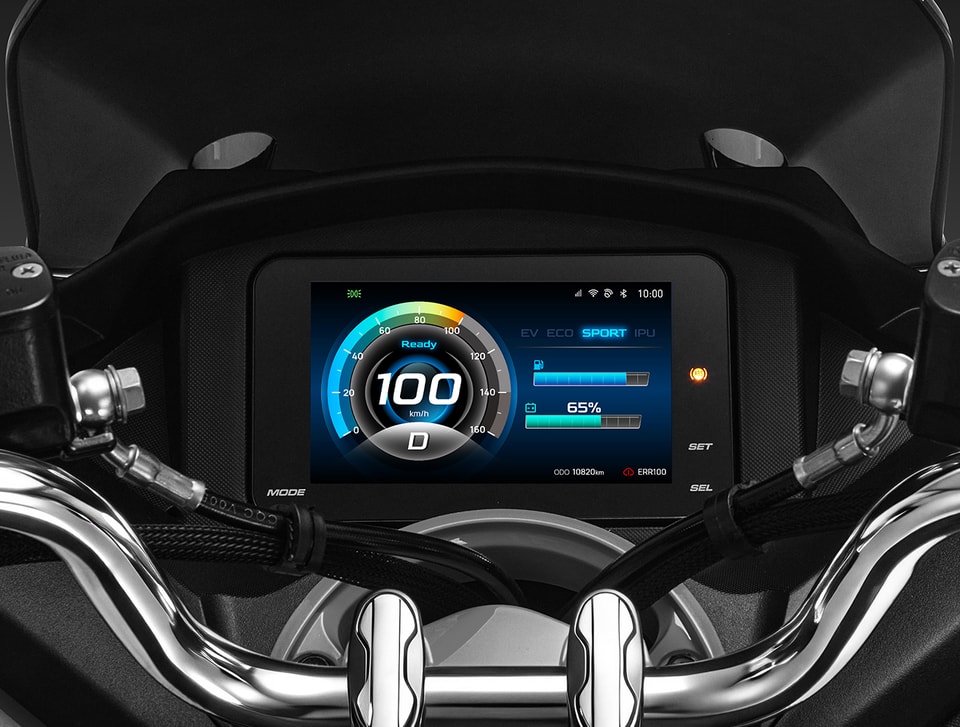

5-inch TFT display

Dedicated Range-Extender System Interface: At-a-Glance Status Display (Battery, Fuel, 4 Modes)

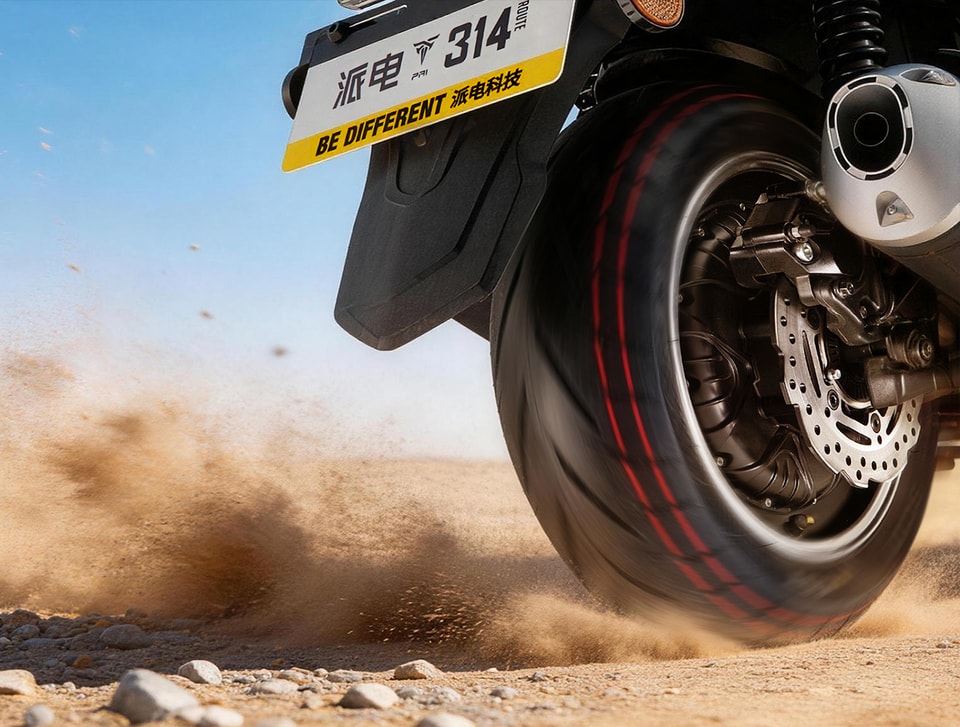

High wear-resistant tires

Front wheel: 100/80-14
Rear wheel: 130/70-13

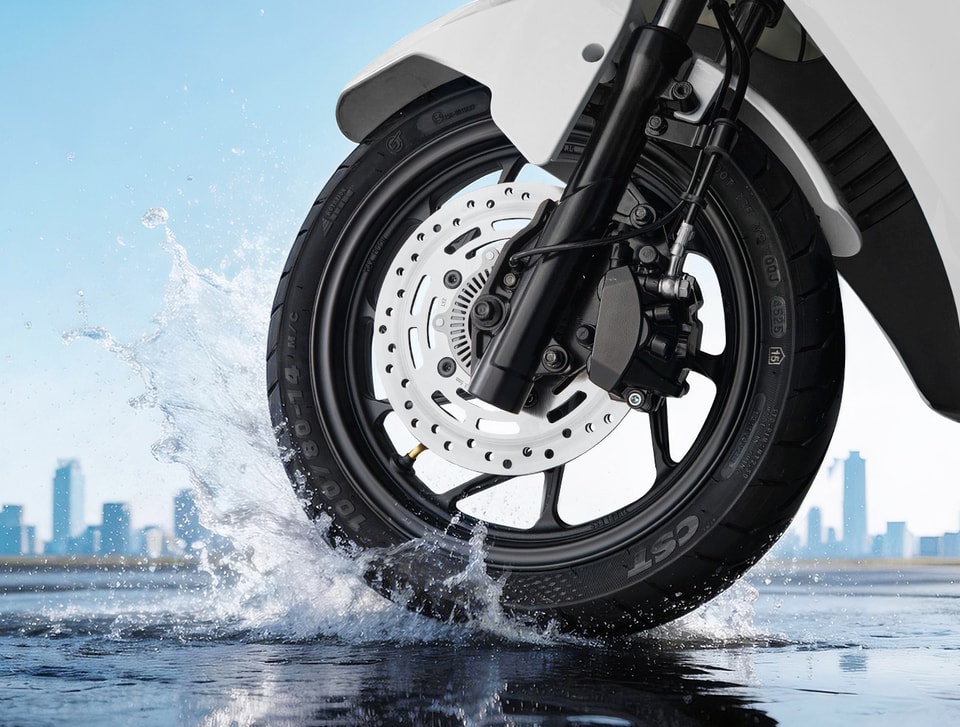

Dual-channel ABS+TCS

Front dual-piston caliper: 240mm
Rear dual-piston caliper: 200mm

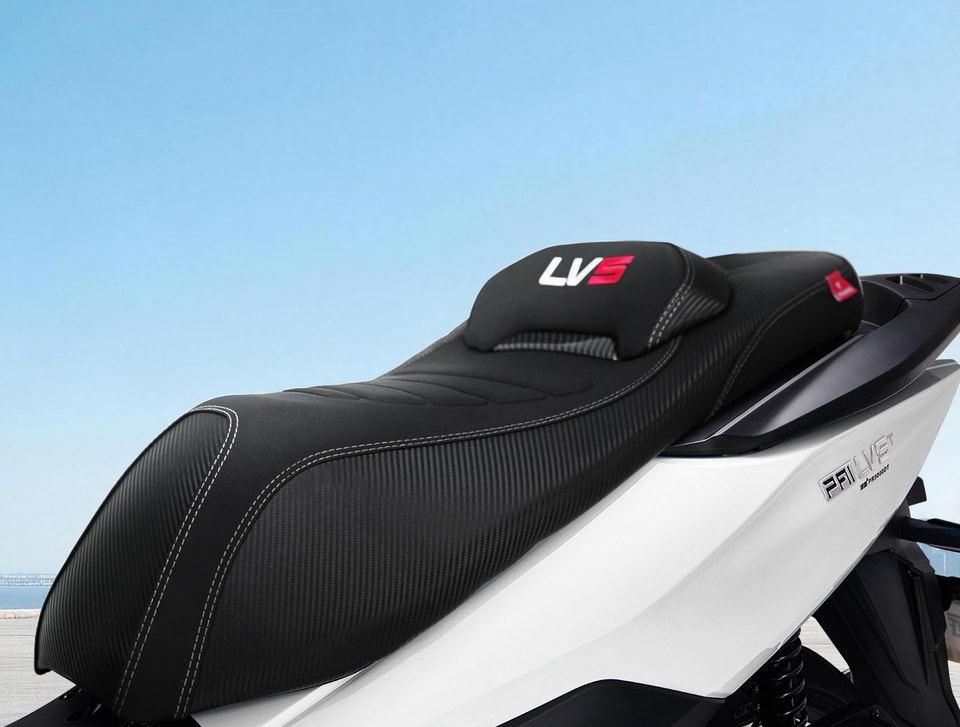

Hump-shaped comfort seat cushion

Sponge density: >50kg/m³
Rebound: >55%

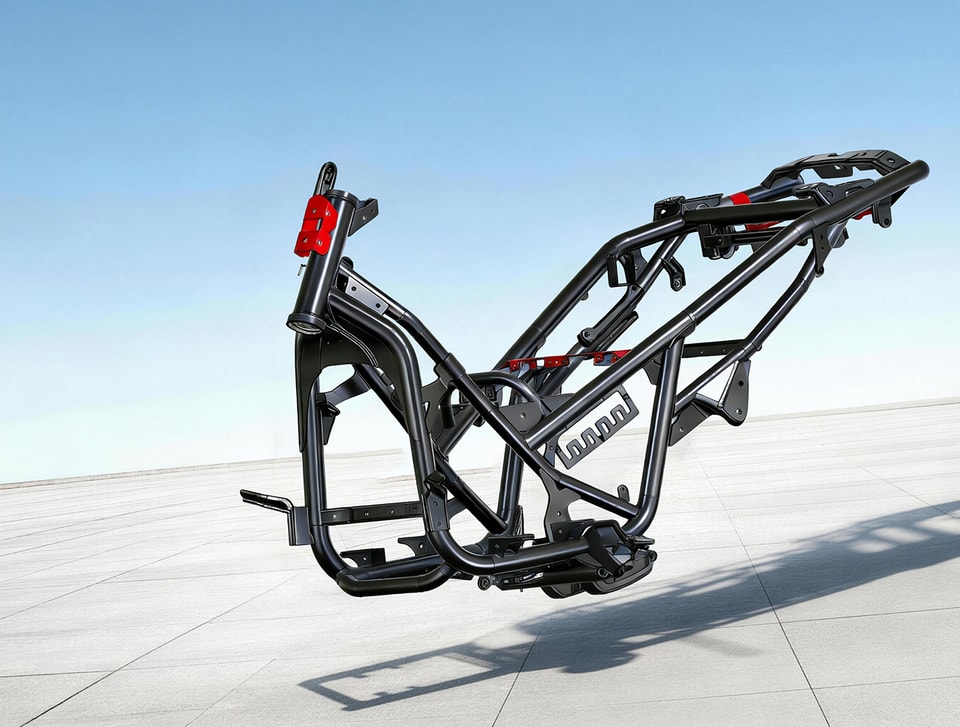

Reinforced Alloy Steel Double-Cradle Frame

Vibration durability test: 2000km
Fork Vibration Test: 100cycles
Yield strength: 235Mpa
Tensile strength: 420Mpa
  • Length Width Height
    1943mm*745mm*1099mm
  • Seat height
    764mm

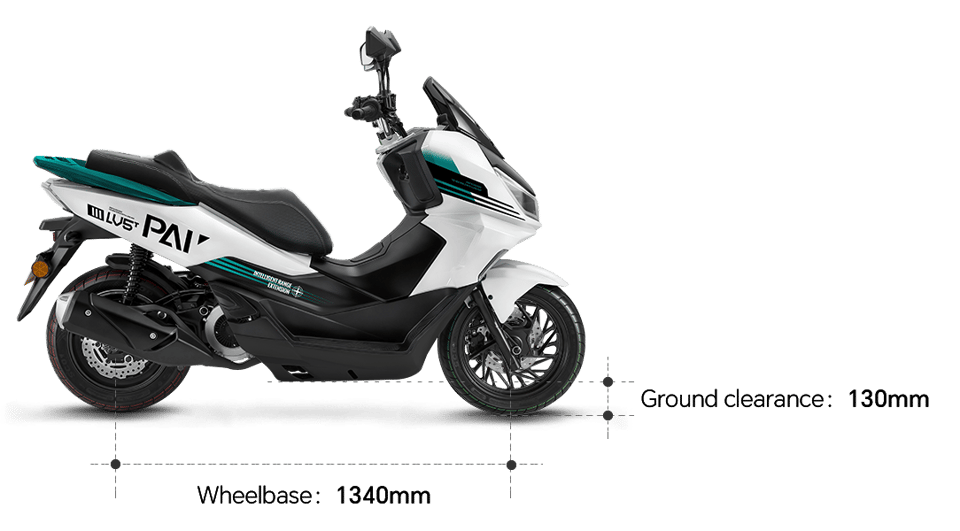

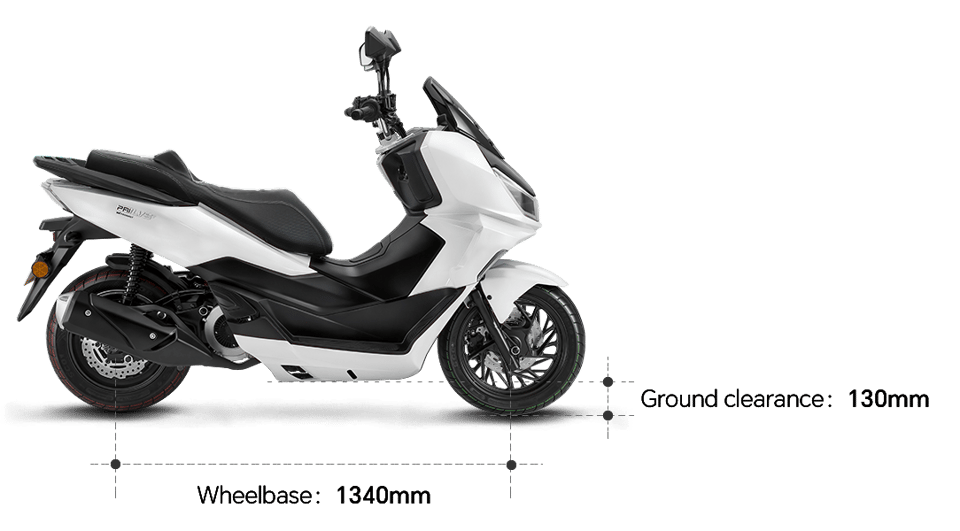

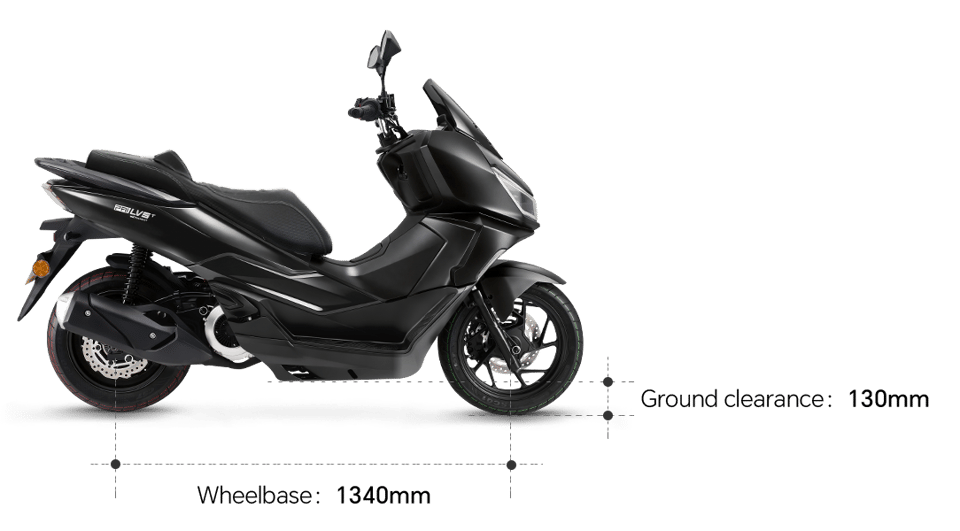

  • Ground clearance
    130mm
  • Wheelbase
    1340mm
  • Curb weight
    155kg
  • Fuel tank capacity
    9.0L
  • Overall range500km+
  • Top speed100km
  • Fuel consumption per 100km2.2 L
  • Maximum climb≥30°
  • Driving ModeEV、ECO、SPORT、IPU
  • Battery SpecificationsSemi-solid lithium battery 74V30 AH
  • Front suspension system31mm telescopic fork, 100mm travel
  • Rear suspension systemHydraulic dual-chamber, 70mm travel
  • Tire specificationsF: 100/80-14 / R: 130/70-13
  • Braking systemF: 240mm disc brake / R: Disc brake
  • Instrument panel5-inch TFT display
  • Range extender displacement150cc
  • Security ConfigurationABS anti-lock braking / TCS traction control

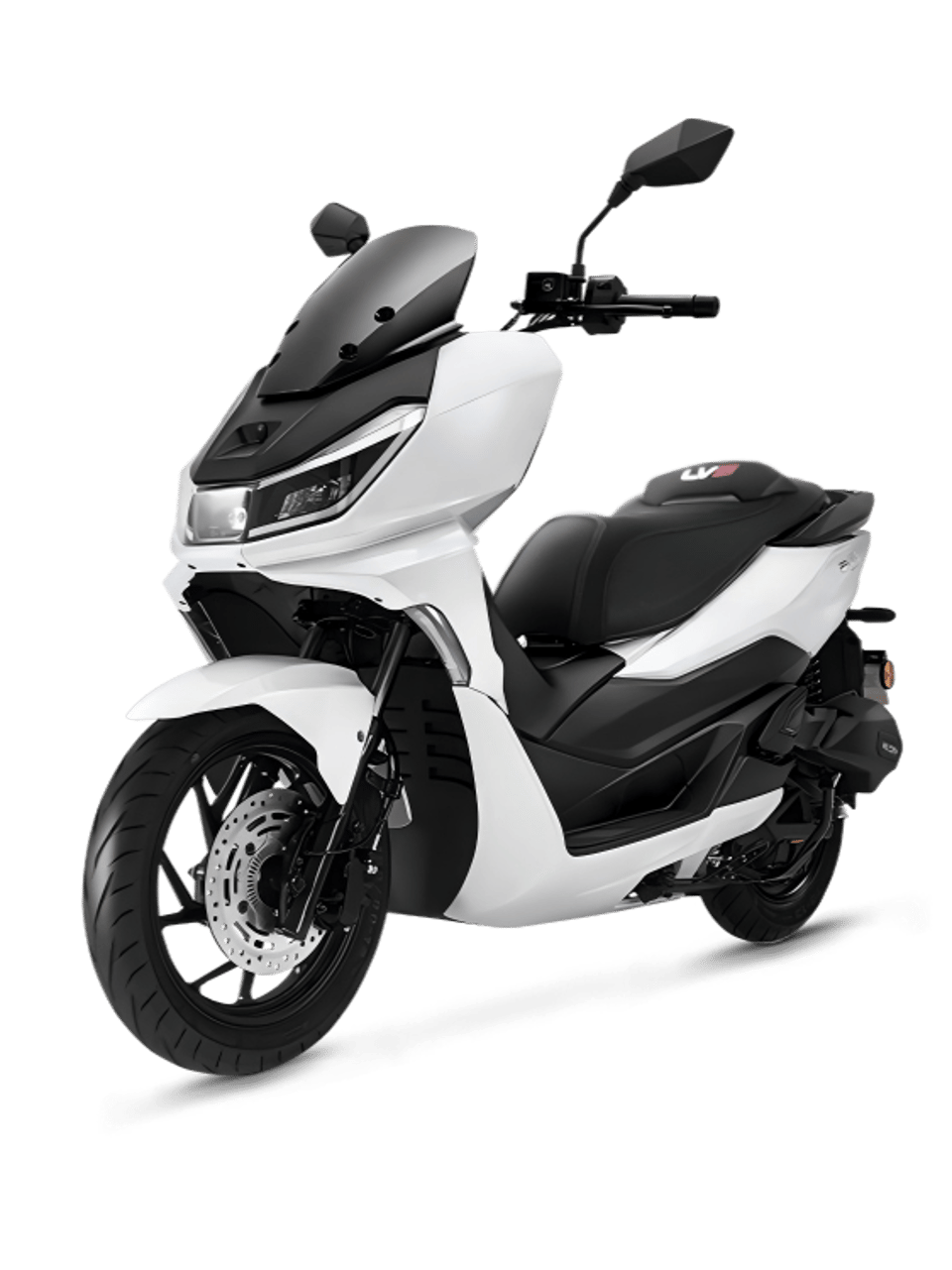

Product Specification Diagram

Product Insight

PAI LV5 Product Overview

PAI LV5 is a range-extended electric motorcycle engineered for riders and mobility partners requiring longer-distance capability. Its electric drive is supported by a compact range extender, helping extend operating flexibility beyond standard battery-only use cases.

Key Advantages

  • 500 km+ overall range for extended travel
  • 5000W rated power for motorcycle-level performance
  • 150cc range extender for added flexibility
  • Designed for long-distance electric mobility markets

Suitable Applications

LV5 is suitable for intercity commuting, fleet operations, touring-oriented markets and regions where charging infrastructure may vary across routes.

Specification Highlights

  • Overall range: 500 km+
  • Top speed: 100 km/h
  • Rated power: 5000W
  • Range extender displacement: 150cc

Contact PAI Mobility to evaluate LV5 range-extended motorcycle cooperation and regional specification requirements.
